SH 125

Busbar support made of Duroplast

Products » Busbar support » Made of duroplast » SH 125

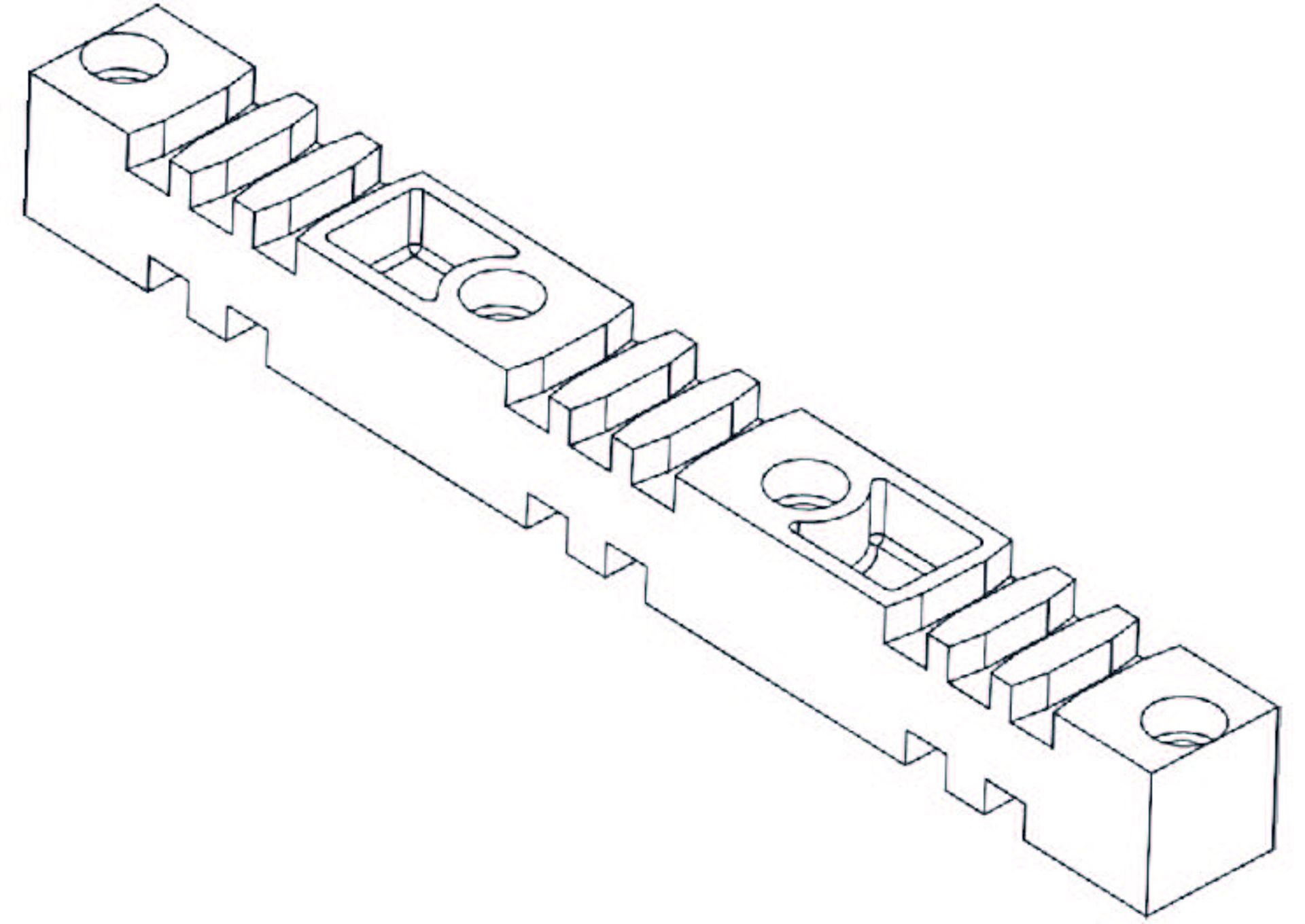

SH 125

Sammelschienenhalter aus Duroplast SH 125

Product features

5

Operating AC voltage 1000 V

5

Continuous current over 5500 A

5

Phase distance 125 mm

Order number Color
010300 brown
010400 grey

Mounting example

SH 185/10: Montagebeispiel 1
SH 185/10: Montagebeispiel 1
SH 185/10: Montagebeispiel 2

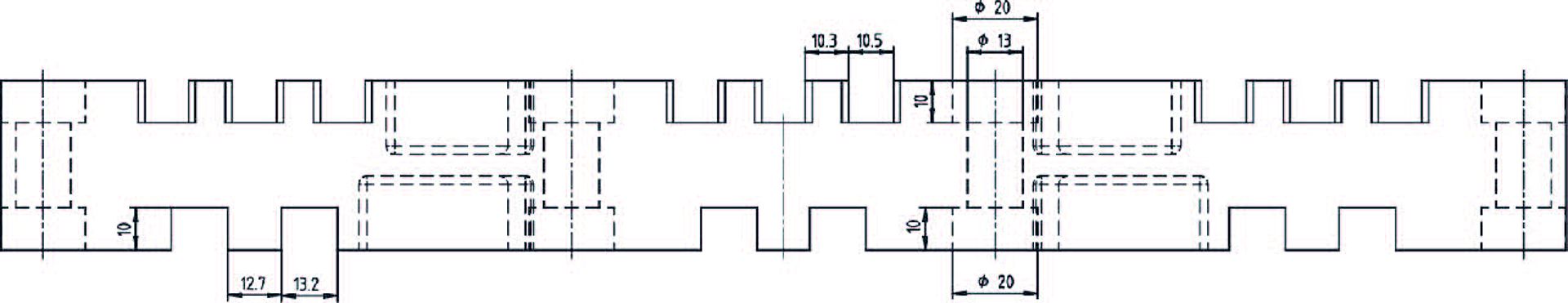

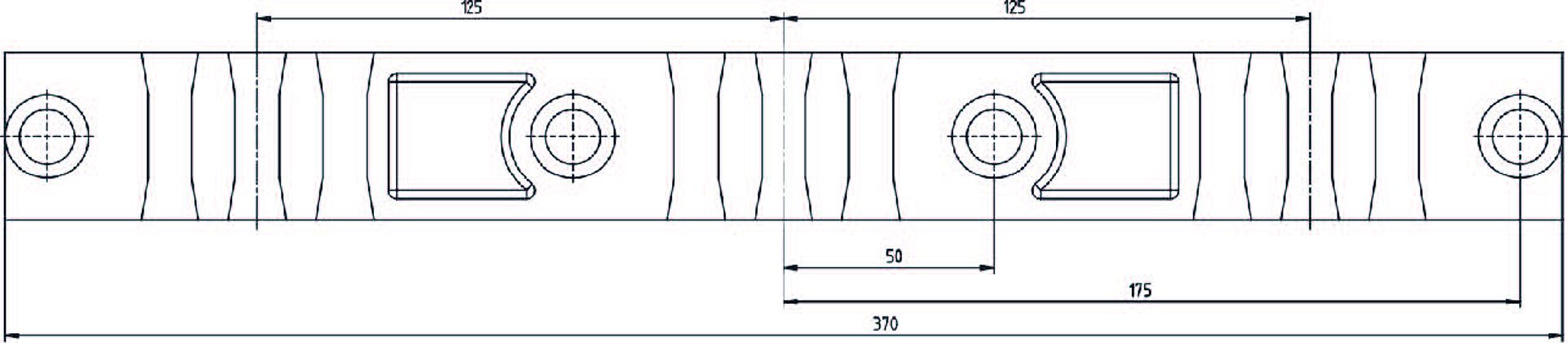

Product details

Height
x_Thickness
Continuous current in A ~ up to 60 Hz g/cm³   Cross section Weight
Number of rails Number of rails Number of rails
mm 1 2 3 mm² kg/m
40 x 10 840 1510 399 3,55
50 x 10 1000 1770 499 4,44
60 x 10 1155 2015 599 5,33
80 x 10 1450 2470 799 7,11
100 x 10 1745 2900 999 8,89
120 x 10 2035 3350 1200 10,70
160 x 10 2700 4350 1600 14,20

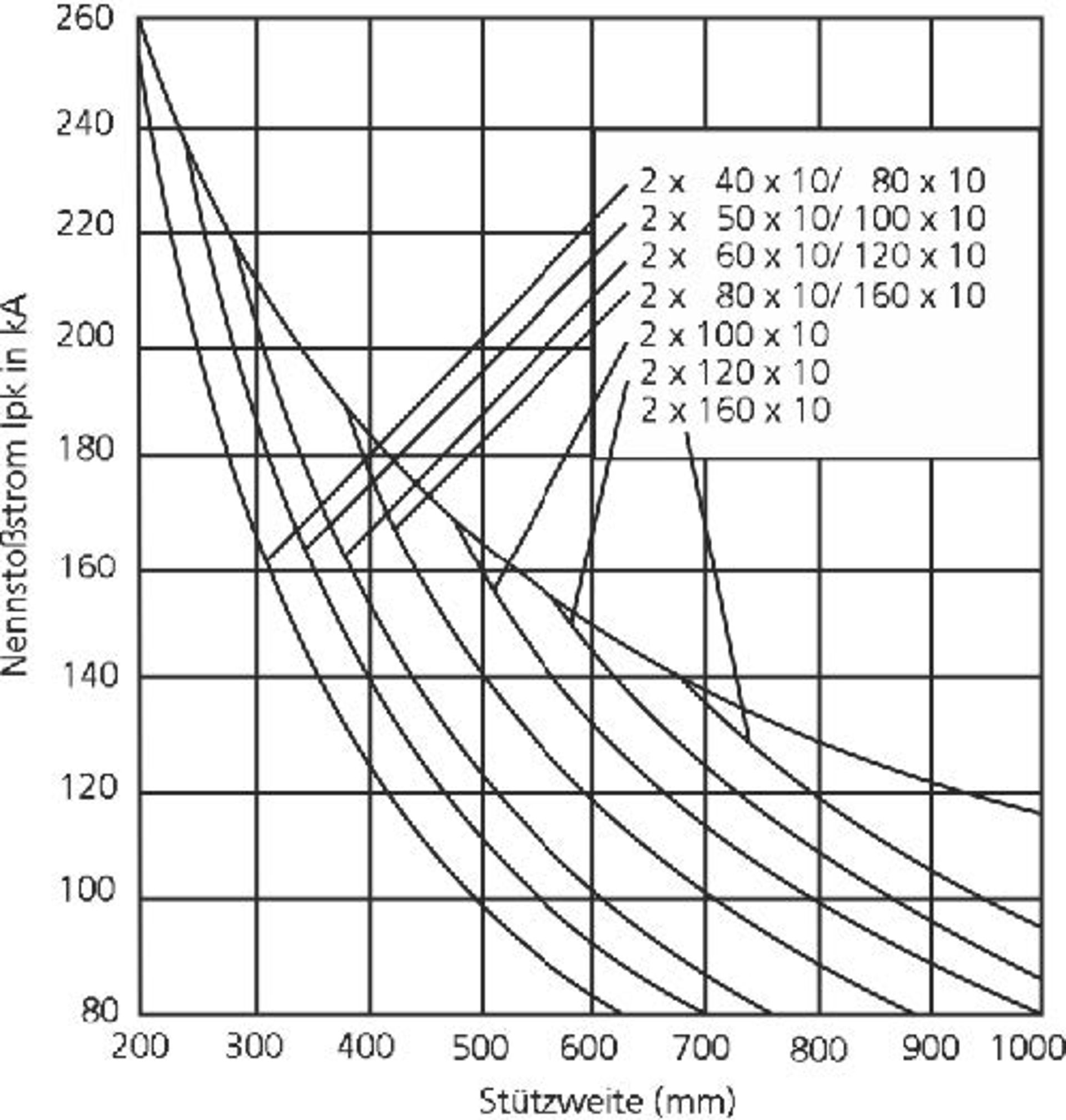

Other

SH 185/10: Montagebeispiel 1

Raw material properties

5

glass fiber reinforced polyester resin (UP)

5

DIN type 803 (self-extinguishing)

5

Color: brown or light grey (other colors on request)

5

Temperature range from -40 to +130 °C

Shape retention HDT-A ISO 75 °C >250
Bulk density ISO 1183 g/cm³ 1,75
Fire behavior UL 94 Klasse V0 bei 3,2 mm
Volume resistivity IEC 60093 Ohm cm 10¹⁴
Surface resistance IEC 60093 Ohm 10¹²
Dielectric strength (1 mm) IEC 60243 kV/mm  20
Tracking resistance IEC 60112 CTI  600
The data we quote are subject to certain tolerances, both due to the manufacturing process and the primary products used. They are therefore average values, i.e. non-binding guide values, from which no warranty claims can be derived. We reserve the right to make changes!

Typical areas of application

Wind energy

Automobilindustrie

Switch cabinet construction

Schaltanlagenbau
