Z 185/1

Busbar support made of Duroplast

Products » Busbar support » Made of duroplast » Z 185/1

Z 185/1

Sammelschienenhalter aus Duroplast Z 185-1

Product features

5

Operating AC voltage 1000 V

5

Continuous current over 4000 A

5

Phase distance 185 mm

Order number Color
011400 grey

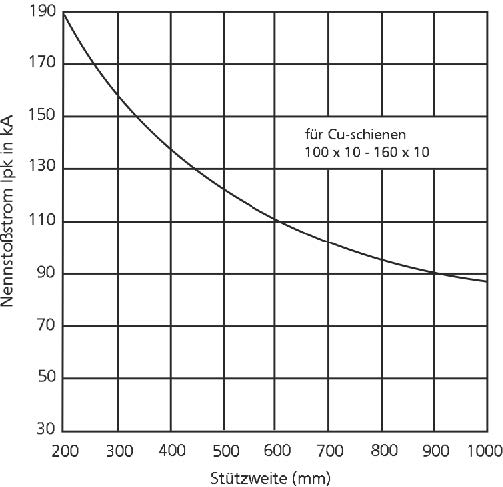

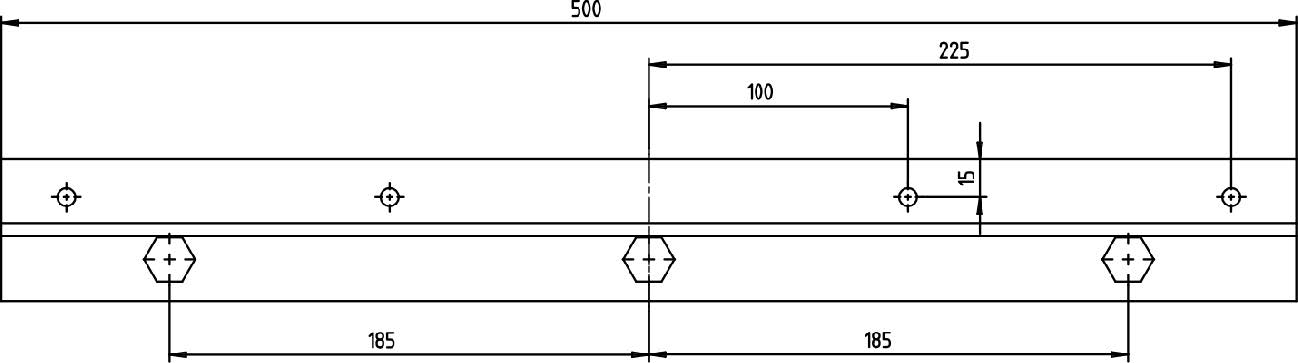

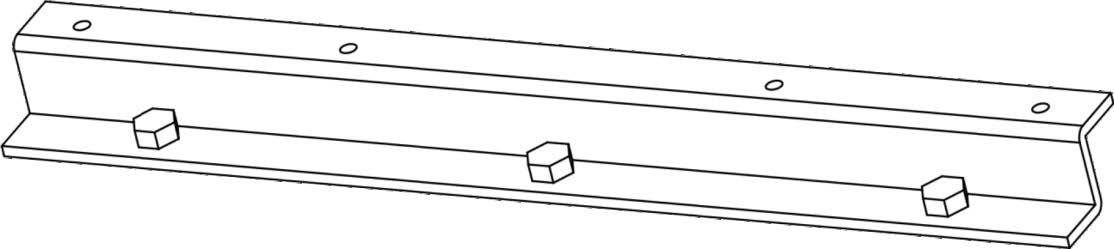

Mounting example

SH 185/10: Montagebeispiel 1
SH 185/10: Montagebeispiel 1
SH 185/10: Montagebeispiel 2

Product details

Double rails with spacers! For horizontal busbars 10 mm thick, made of E-Cu F30 bright. In accordance with DIN 43671, the table contains the continuous currents for 35°C air and 75°C rail temperature, due to the very heat-resistant carrier material.

Height
x_Thickness
Continuous current in A ~ up to 60 Hz Cross section Weight
Number of rails Number of rails
mm 1 2 mm² kg/m
30 x 10 670 1240 299 2,66
40 x 10 840 1510 399 3,55
50 x 10 1000 1770 499 4,44
60 x 10 1155 2015 599 5,33
80 x 10 1450 2470 799 7,11
100 x 10 1745 2900 999 8,89
120 x 10 2035 3350 1200 10,70
160 x 10 2700 4350 1600 14,20

Other

SH 185/10: Montagebeispiel 1

Raw material properties

Heat resistance according to Martens DIN 53462 °C >150
Bulk density ISO 1183 g/cm³ 1,75
Fire behavior UL 94 Klasse HB
Volume resistivity IEC 60093 Ohm cm 10¹²
Dielectric strength (90°C vertical) IEC 60243 kV/3 mm  14
Tracking resistance IEC 60112 CTI  600
Halogens None (hatchet test)
The data we quote are subject to certain tolerances, both due to the manufacturing process and the primary products used. They are therefore average values, i.e. non-binding guide values, from which no warranty claims can be derived. We reserve the right to make changes!
