Supporting insulators 1-3 kV

Made of duroplast with wrench flats

Products » Supporting insulators 1-3 kV » Made of duroplast

Duroplast

Thermoplastic

Special supporter

1-3 kV

Product features

Type-tested according to DIN EN 61439-1 (VDE 0660-600-1): 2012-06; EN 61439-1:2011

5

Support insulators made of glass fiber reinforced BMC with wrench flats

5

For indoor switchgear

5

Color: brown

Mounting example

Montagebeispiel: Stützisolatoren aus Duroplast

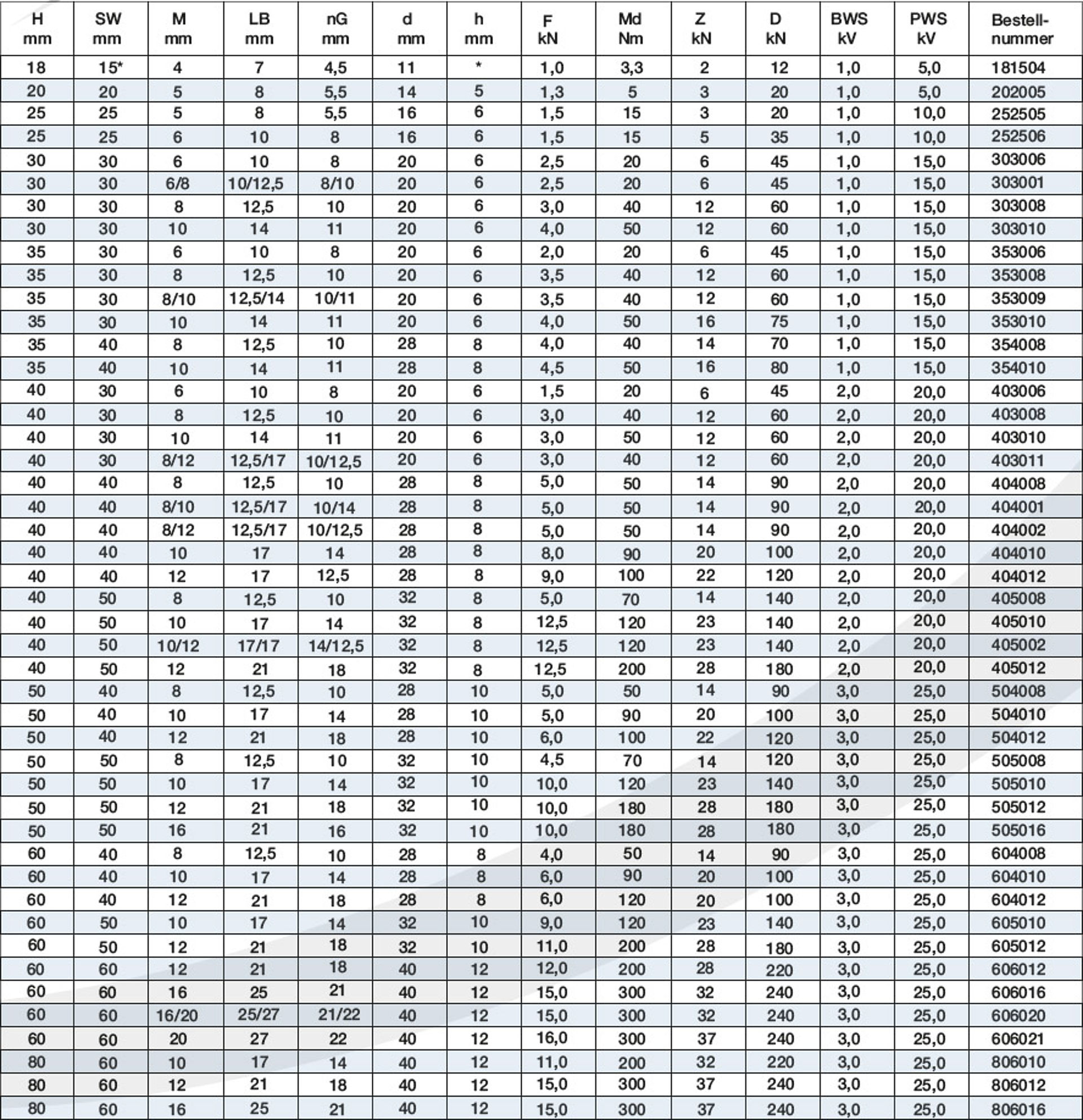

Product details

Fittings made of blind nuts – steel, galvanized On request: brass nuts or steel bolts, galvanized

Abbreviations:

H = height
SW = Width across flats
M = Thread (metric)
LB = length of bushing
nG = usable thread depth
d = diameter at shoulder
h = height SW
F = wrap-around force
Md = torque
Z = tensile force
D = compressive force
BWS = Operating alternating stress
PWS = test alternating stress

Raw material properties

5

glass fiber reinforced polyester resin (UP)

5

DIN type 803 (self-extinguishing)

5

Color: brown or light gray (other colors on request)

5

Temperature range from -40 to +130 °C

Dimensional stability HDT-A	ISO 75	°C	>250
Bulk density	ISO 1183	g/cm³	1,75
Fire behavior	UL 94	Klasse	V0 bei 3,2 mm
Volume resistivity	IEC 60093	Ohm cm	10¹⁴
Surface resistivity	IEC 60093	Ohm	10¹²
Dielectric strength (1 mm)	IEC 60243	kV/mm	20
Tracking resistance	IEC 60112	CTI	600

The data we quote are subject to certain tolerances, both due to the manufacturing process and the primary products used. They are therefore average values, i.e. non-binding guide values, from which no warranty claims can be derived. We reserve the right to make changes!
